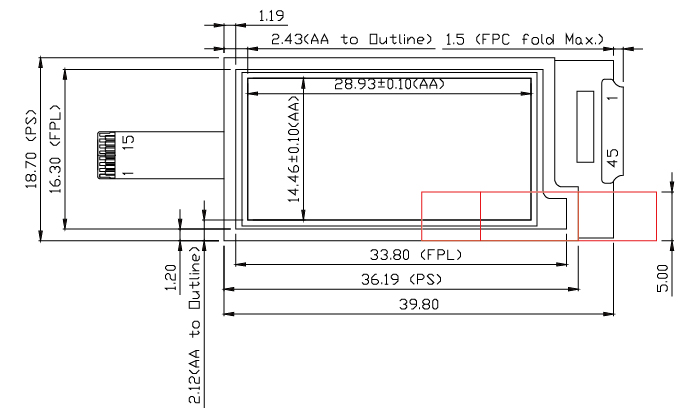

EPD Layout
Black & White
1.27˝ ePaper Display
$99.00
ADD TO FAVORITE
-
Description
« Compatible with E Ink HULK evaluation kit »
1.27˝ ePaper Display (ED013TC1) is a reflective electrophoretic E Ink technology display module based on glass active matrix TFT substrate. It has 1.27” active area with 128×256 pixels, the display is capable to display images at 2 gray levels (1 bit) depending on the display controller and the associated waveform file it used.
-
Note
● Please make sure you are in possession of a E Ink HULK Kit. Go to HULK
● Firmware programmer (MSP-EXP430G2) kit is required to update firmware. Please purchase firmware programmer from Here. (MSP-EXP430G2)
Please select the corresponding project, and we will provide you with relevant support files according to your needs.
Application
Reading & Writing
Education
Business & Office
Mobile & Wearables
Retail
Logistics & Factory
Healthcare & Hospital
Transportation & Outdoor
Indoor Signage
Home & Appliance
Automotive
Innovative Design
Module Size
1.27˝ ePaper Display (ED013TC1)
Add to Cart
Added to Cart
Customers also considered
-
![}]()
HULK Driving Board
$350.00
Add to Cart
Add to Cart
Introduction
About This Item
Features
● High contrast reflective/electrophoretic technology
● 128×256 resolution
● High reflectance
● Ultra wide viewing angle
● Pure reflective mode
● Bi-stable
● Ultra low power consumption
● SPI interface
● Glass substrate
Package content
● 1.27˝ ePaper Display (ED013TC1)
● Adapter FPC
Specification
Product Information
Item
Specification
Size
1.27 inch
Resolution
128 (H) x 256 (V) pixel
Active Area
14.46 (H) x 28.93 (V) mm
Pixel Pitch
0.113 (H) x 0.113 (V) mm
Pixel Configuration
Rectangle
Outline Dimension
18.7 (W) x 39.8 (H) x 0.96 (D) mm
Total Weight
1.55 ± 0.16 g
Gray Level
2
ppi
225
Backplane
Glass
