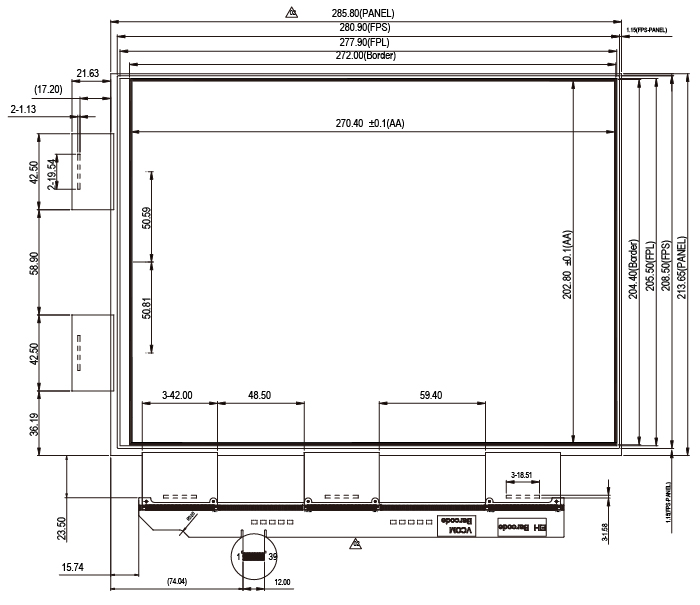

EPD Layout
Black & White
-
Description
« Compatible with E Ink ICE evaluation kit »
13.3˝ ePaper Display (VB3300-NCB) is a reflective electrophoretic E Ink® technology display module based on active matrix TFT substrate. It has 13.3” active area with 1600 x 1200 pixels, the display is capable to display images at 2-16 gray levels (1-4 bits) depending on the display controller and the associated waveform file.
-
Note
● Driving Board is not included in the display module package.
● Please make sure you are in possession of a E Ink ICE Driving Board.
Customers also considered
-
![}]()
ICE Driving Board
$350.00
Add to Cart
Add to Cart
Introduction
About This Item
Features
● High contrast reflective / electrophoretic technology
● 1600×1200 display
● High reflectance
● Ultra wide viewing angle
● Ultra low power consumption
● Pure reflective mode
● Bi-stable
● Commercial temperature range
Package content
● 13.3˝ ePaper Display (VB3300-NCB)
● FPC Adapter
Specification
Product Information
Item
Specification
Model
VB3300-NCB
Size
13.3 inch
Resolution
1600 (H) × 1200 (V) pixel
Active Area
270.4 (H) × 202.8 (V) mm
Pixel Pitch
0.169 (H) × 0.169 (V) mm
Pixel Configuration
Rectangle
Outline Dimension
285.8 (W) × 213.65 (H) × 0.78 (D) mm
Total Weight
96 g
Gray Level
16
ppi
150
Backplane
Glass
Compatibility Table
E Ink ePaper Display Module v.s. Driving Board
1.64˝ Spectra™ 3100 ePaper Display (EB2000-AFA)
Click to know more
HULK
THOR
ICE
Arduino
Salt
Luvia
FLASH
MeeNote
HULK
THOR
ICE
Arduino
Salt
Luvia
FLASH
MeeNote
Technical Documents
Download
Browsing online and downloading
