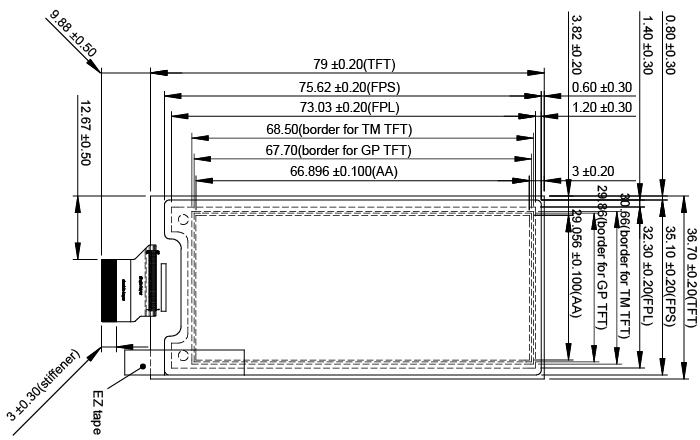

EPD Layout
3 Colors
-
Description
« Compatible with E Ink Arduino and Hulk evaluation kit »
2.9˝ Spectra™ 3000 ePaper Display (EA2220-BJC) is a reflective electrophoretic E Ink technology display module based on glass active matrix TFT substrate. It has 2.9” active area with 296 x 128 pixels, and the display is capable to display images with black and white and red content. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, RAM, LUT, VCOM, and border are supplied with each panel.
By applying 2.9˝ Spectra™ 3000 ePaper Display (EA2220-BJC) with Arduino development kit enables you to develop innovative applications that benefit from low-power consumption of ePaper displays. It features simple installation and quick tryout for the desired applications. One can use development kit to load and view custom images on E Ink display with a PC or a laptop. Learn more about Arduino driving board.
This model is suitable for the applications of ESL.
-
Note
Driving board is not included in the display module package. Please purchase a Arduino or Hulk driving board package.
Customers also considered
-
![}]()

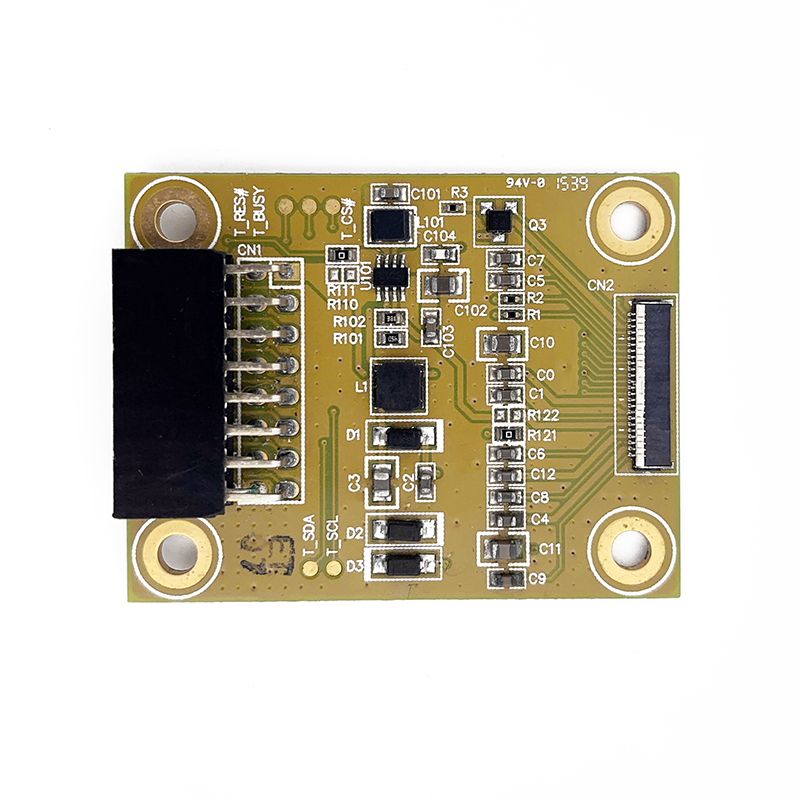

HULK Driving Board
$350.00
Add to Cart
Add to Cart
-
![}]()

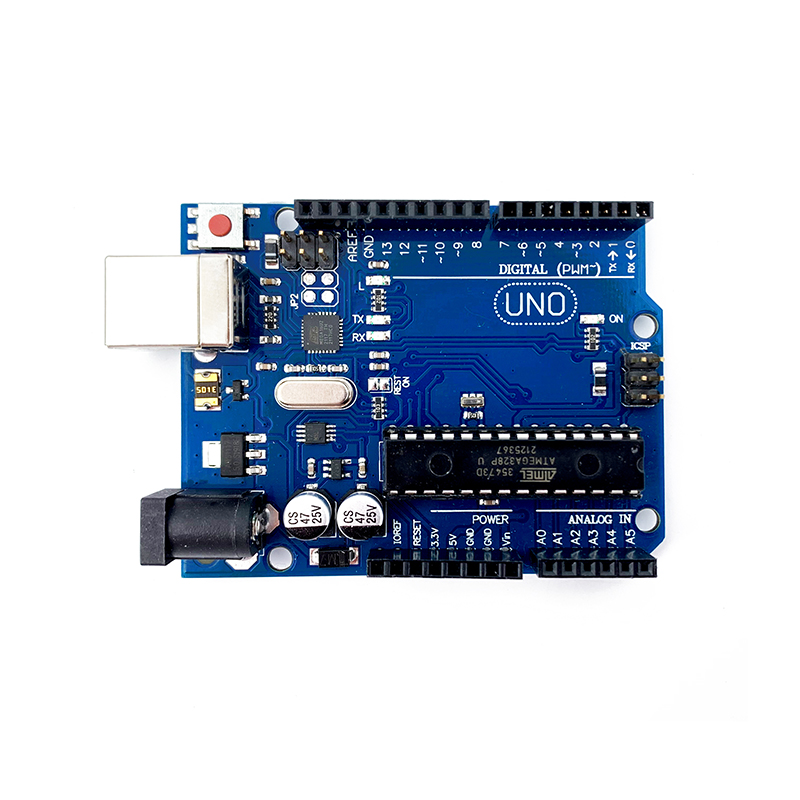

Arduino Driving Board
$350.00
Add to Cart
Add to Cart
Introduction
About This Item
Features
● Highlight Red color
● High contrast
● High reflectance
● Ultra wide viewing angle
● Ultra low power consumption
● Pure reflective mode
● Bi-stable
● Commercial temperature range
● Landscape, portrait mode
● Antiglare hard-coated front-surface
● Low current deep sleep mode
● On chip display RAM
● Waveform stored in On-chip OTP
● Serial peripheral interface available
● On-chip oscillator
● On-chip booster and regulator control for generating VCOM, Gate and source driving voltage
● I2C Signal Master Interface to read external temperature sensor
● Available in COG package
Package content
● 2.9˝ ePaper Display (EA2220-BJC)
Specification
Product Information
Item
Specification
Model
EA2220-BJC
Size
2.9 inch
Resolution
296 (H) × 128 (V) pixel
Active Area
66.9 (H) × 29.06 (V) mm
Pixel Pitch
0.227 (H) × 0.226 (V) mm
Pixel Configuration
Rectangle
Outline Dimension
79.0 (H) × 36.7 (V) × 0.91 (D) mm
Total Weight
5.03 ± 0.5 g
ppi
112
