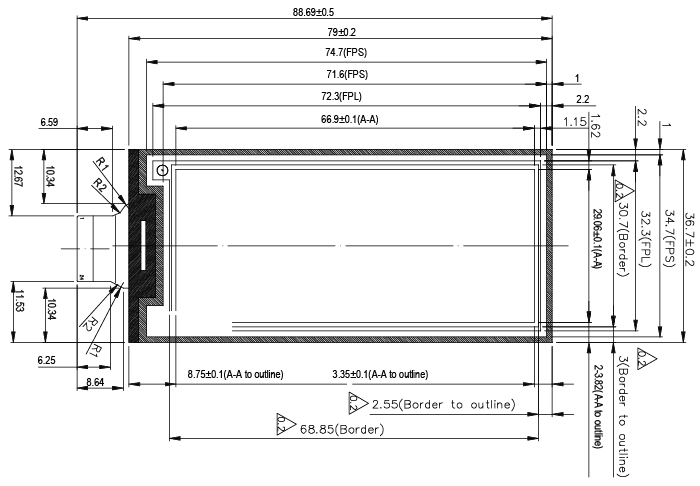

EPD Layout
Cold Temperature
2.9˝ Aurora™ ePaper Display
$99.00
ADD TO FAVORITE
-
Description
« Compatible with E Ink HULK evaluation kit »
2.9˝ Aurora™ ePaper Display (VC2207-BJA) is a reflective electrophoretic E Ink technology display module based on glass active matrix TFT substrate. It has 2.9” active area with 296 x 128 pixels, and the display is capable to display images with black and white content. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, RAM, LUT, VCOM, and border are supplied with each panel.
-
Note
● Please make sure you are in possession of a E Ink HULK Kit. Go to HULK
● Firmware programmer (MSP-EXP430G2) kit is required to update firmware.
Please select the corresponding project, and we will provide you with relevant support files according to your needs.
Application
Reading & Writing
Education
Business & Office
Mobile & Wearables
Retail
Logistics & Factory
Healthcare & Hospital
Transportation & Outdoor
Indoor Signage
Home & Appliance
Automotive
Innovative Design
Module Size
2.9˝ Aurora™ ePaper Display (VC2207-BJA)
Add to Cart
Added to Cart
Customers also considered
-
![}]()
HULK Driving Board
$350.00
Add to Cart
Add to Cart
Introduction
About This Item
Features
● High contrast reflective/electrophoretic technology
● 296×128 display
● Ultra wide viewing angle
● Ultra low power consumption
● Pure reflective mode
● Bi-stable
● Landscape, Portrait mode
● Anti-glare hard-coated front surface
● Low current deep sleep mode
● SPI available
Package content
● 2.9˝ Aurora™ ePaper Display (VC2207-BJA)
Specification
Product Information
Item
Specification
Model
VC2207-BJA
Size
2.9 inch
Resolution
296 (H) x 128 (V) pixel
Active Area
66.9 (H) x 29.06 (V) mm
Pixel Pitch
0.227 (H) x 0.226 (V) mm
Pixel Configuration
Square
Outline Dimension
79.0 (W) × 36.7 (H) × 1.15 (D) mm
Total Weight
4 ± 0.5 g
Gray Level
Black/White
ppi
112
Backplane
Glass
Compatibility Table
E Ink ePaper Display Module v.s. Driving Board
1.64˝ Spectra™ 3100 ePaper Display (EB2000-AFA)
Click to know more
HULK
THOR
ICE
Arduino
Salt
Luvia
FLASH
MeeNote
HULK
THOR
ICE
Arduino
Salt
Luvia
FLASH
MeeNote
Technical Documents
Download
Browsing online and downloading
FIND MORE
