4 Colors
4.37˝ Spectra™ 3100 ePaper Display
$159.00
ADD TO FAVORITE
-
Description
« Compatible with E Ink Thor evaluation kit »
4.37˝ Spectra™ 3100 ePaper Display (EB2000-DDA) is a 4.37-inch color EPD, reflective electrophoretic E Ink technology display module based on glass active matrix TFT substrate. It offers 4 colors of black, white, yellow and red images.
E Ink Spectra 3100, bright and saturated color combinations contributed by 4 –Pigments system for creative promotion and faster update time, wide temperature range to accommodate more needs. High resolution (144 ppi) to display more content to attract consumer’s attention.
By applying 4.37˝ Spectra™ 3100 ePaper Display (EB2000-DDA) with Thor development kit (driving board + accessories) enables you to develop innovative applications that benefit from low-power consumption of ePaper displays. It features simple installation and quick tryout for the desired applications. One can use development kit to load and view custom images on E Ink display with a PC or a laptop.
Learn more about THOR Driving Board.
This model is suitable for the applications of ESL.
-
Note
● Driving board and accessories are not included in the display module package. Please purchase a THOR Driving Board package and THOR Accessories package for EB2000-DDA
● If you are already in possession of a THOR Driving Board, please make sure you have matching accessories (THOR Accessories package for EB2000-DDA)
Please select the corresponding project, and we will provide you with relevant support files according to your needs.
Application
Reading & Writing
Education
Business & Office
Mobile & Wearables
Retail
Logistics & Factory
Healthcare & Hospital
Transportation & Outdoor
Indoor Signage
Home & Appliance
Automotive
Innovative Design
Module Size
4.37˝ Spectra™ 3100 ePaper Display (EB2000-DDA)
Add to Cart
Added to Cart
Customers also considered
-
![}]()

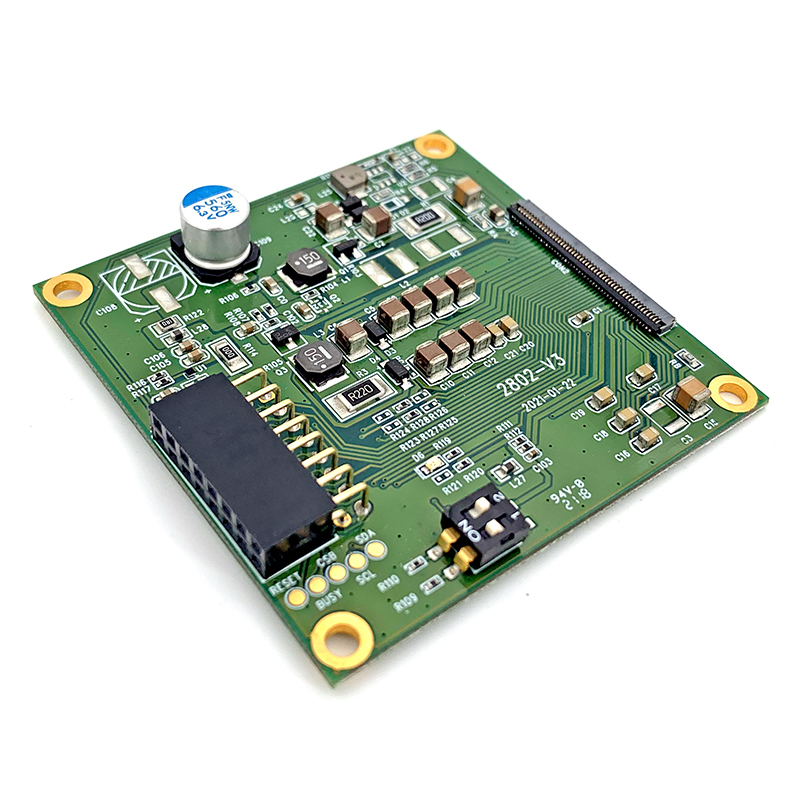

THOR Driving Board
$150.00
Add to Cart
Add to Cart
-
![}]()
THOR Accessories
$200.00
Add to Cart
Add to Cart
Introduction
About This Item

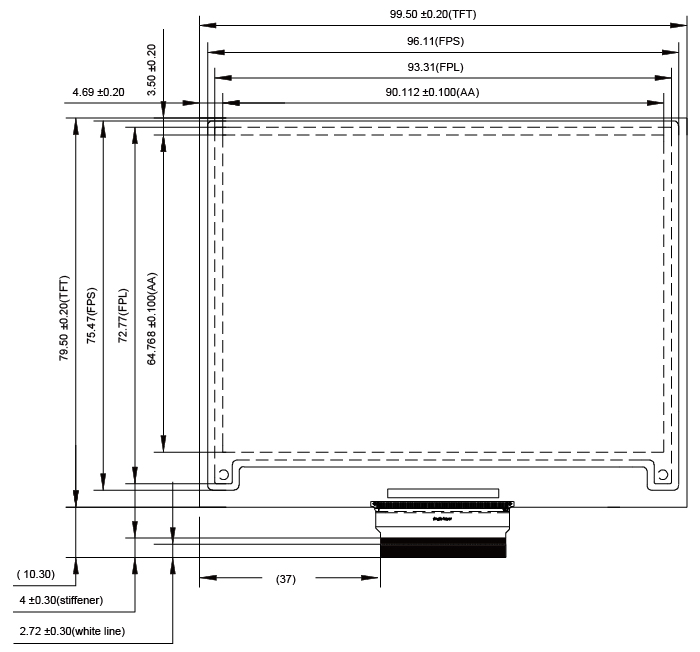

EPD Layout
Features
● Highlight Red and Yellow color
● High contrast
● High reflectance
● Ultra low power consumption
● Pure reflective mode
● Bi-stable
● Antiglare hard-coated front-surface
● Low current deep sleep mode
● On chip display RAM
● Waveform stored in On-chip OTP
● Serial peripheral interface available
● On-chip oscillator
● On-chip booster and regulator control for generating VCOM, Gate and source driving voltage
● I2C Signal Master Interface to read external temperature sensor
● Available in COG package
Package content
● 4.37˝ ePaper Display (EB2000-DDA)
Applications
E Ink Spectra™ 3100 is a four color (black, white, red, yellow) ePaper designed for electronic shelf labels (ESL) and retail signage. Spectra 3100 offers retailers vivid colors, an improved update time, and an expanded temperature range for red and yellow states, to satisfy retailers' needs to operate ESL tags and advertisement signage in various environments with stores.
Specification
Product Information
Item
Specification
Model
EB2000-DDA
Size
4.37 inch
Resolution
512 (H) × 368 (V) pixel
Active Area
90.11 (H) × 64.77 (V) mm
Pixel Pitch
0.176 (H) × 0.176 (V) mm
Pixel Configuration
Square
Outline Dimension
99.5 (W) × 79.5 (H) × 0.85 (D) mm
Total Weight
13.2 ± 1.3 g
ppi
144
Compatibility Table
E Ink ePaper Display Module v.s. Driving Board
1.64˝ Spectra™ 3100 ePaper Display (EB2000-AFA)
Click to know more
HULK
THOR
ICE
Arduino
Salt
Luvia
FLASH
MeeNote
HULK
THOR
ICE
Arduino
Salt
Luvia
FLASH
MeeNote
