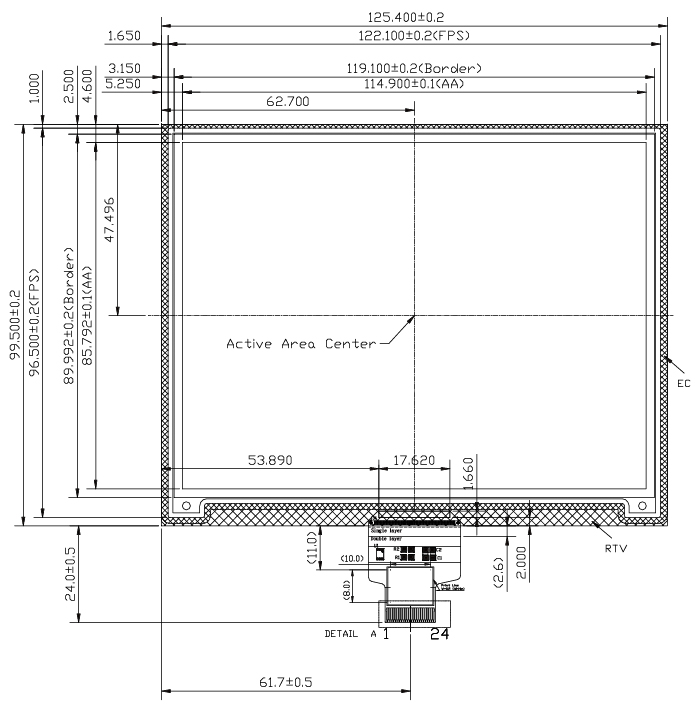

EPD Layout

Cold Temperature
$149.00
ADD TO FAVORITE
Description
« Compatible with E Ink HULK evaluation kit »
5.65˝ Aurora™ ePaper Display (VC2207-EGA) is a reflective electrophoretic E Ink technology display module on an active matrix TFT substrate. The diagonal length of the active area is 5.65” and contains 600 x 448 pixels. The panel is capable of displaying 1-bit black/white images depending on the associated lookup table used. The circuitry on the panel includes an integrated gate and source driver, timing controller, oscillator, DC-DC boost circuit, and memory to store the frame buffer and lookup tables, and additional circuitry to control VCOM and BORDER settings.
Note
● Please make sure you are in possession of a E Ink HULK Kit. Go to HULK
● Firmware programmer (MSP-EXP430G2) kit is required to update firmware.
Please select the corresponding project, and we will provide you with relevant support files according to your needs.
Application
Module Size
Add to Cart
Added to Cart
HULK Driving Board
$350.00
Add to Cart
Add to Cart
About This Item
Features
● High contrast TFT electrophoretic
● 600 x 448 display
● High reflectance
● Ultra wide viewing angle
● Ultra low power consumption
● Pure reflective mode
● Bi-stable
● Commercial temperature range
● Low current sleep mode
● On chip display RAM
● Serial Peripheral Interface available
● External SPI flash/eeprom for waveform
● On-chip oscillator
● On-chip booster and regulator control for generating Vcom, Gate and Source driving voltage
● I2C Signal Master Interface to read external temperature sensor
Package content
● 5.65˝ Aurora™ ePaper Display (VC2207-EGA)
Product Information
Item
Specification
Model
VC2207-EGA
Size
5.65 inch
Resolution
600 (H) × 448 (V) pixel
Active Area
114.9 (H) × 85.8 (V) mm
Pixel Pitch
191.5 (H) × 191.5 (V) mm
Pixel Configuration
Square
Outline Dimension
125.4 (H) × 99.5 (V) × 1.15 (D) mm
Total Weight
28 ± 2.8 g
ppi
128
Backplane
Glass
