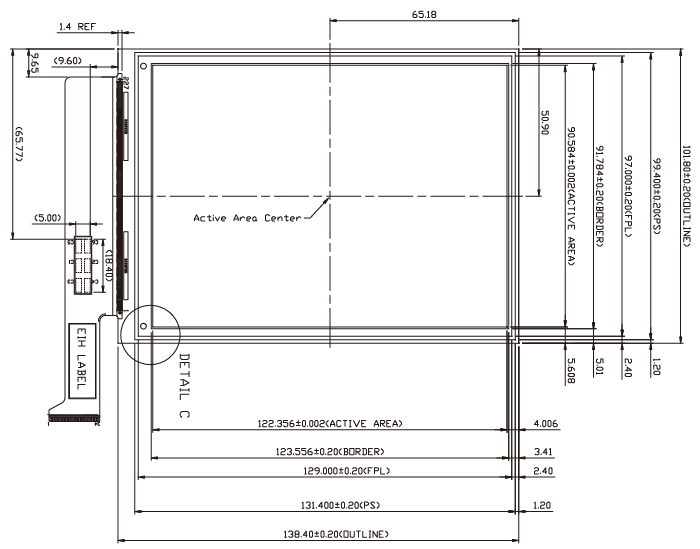

EPD Layout
Black & White
6˝ ePaper Display
$149.00
ADD TO FAVORITE
-
Description

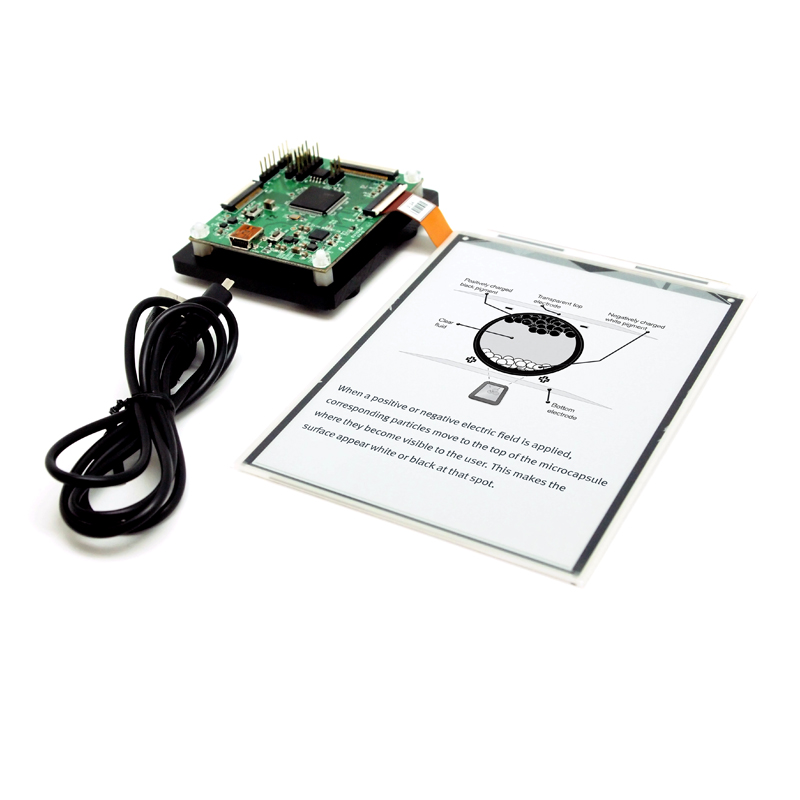

« Compatible with E Ink ICE evaluation kit »
6˝ ePaper Display (ED060KC1) is a reflective electrophoretic E Ink technology display module based on glass active matrix TFT substrate. It has 6” active area with 1072 x 1448 pixels, and the display is capable to display images at 2-16 gray levels (1-4 bit) depending on the display controller and the associated waveform file it used.
-
Note
● Driving Board is not included in the display module package.
● Please make sure you are in possession of a E Ink ICE Driving Board.
Please select the corresponding project, and we will provide you with relevant support files according to your needs.
Application
Reading & Writing
Education
Business & Office
Mobile & Wearables
Retail
Logistics & Factory
Healthcare & Hospital
Transportation & Outdoor
Indoor Signage
Home & Appliance
Automotive
Innovative Design
Module Size
6˝ ePaper Display (ED060KC1)
Add to Cart
Added to Cart
Customers also considered
-
![}]()
ICE Driving Board
$350.00
Add to Cart
Add to Cart
Introduction
About This Item
Features
● High contrast reflective/electrophoretic technology
● 1072 x 1448 resolution
● Ultra wide viewing angle
● Ultra low power consumption
● Pure reflective mode
● Bi-stable
● Commercial temperature range
● Landscape, portrait mode
● Glass substrate
Package content
● 6˝ ePaper Display (ED060KC1)
Specification
Product Information
Item
Specification
Model
ED060KC1
Size
6 inch
Resolution
1072 (H) × 1448 (V) pixel
Active Area
90.584 (H) × 122.356 (V) mm
Pixel Pitch
0.0845 (H) × 0.0845 (V) mm
Pixel Configuration
Rectangle
Outline Dimension
101.8 (W) × 138.4 (H) × 1.01 (D) mm
Total Weight
28 ± 2.8 g
Gray Level
16
ppi
300
Backplane
Glass
Compatibility Table
E Ink ePaper Display Module v.s. Driving Board
1.64˝ Spectra™ 3100 ePaper Display (EB2000-AFA)
Click to know more
HULK
THOR
ICE
Arduino
Salt
Luvia
FLASH
MeeNote
HULK
THOR
ICE
Arduino
Salt
Luvia
FLASH
MeeNote
Technical Documents
Download
