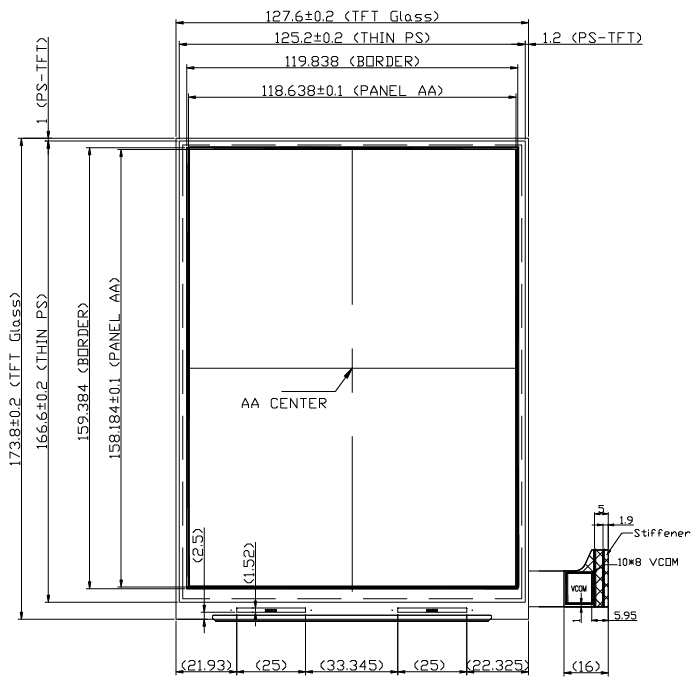

EPD Layout
Black & White
7.8˝ ePaper Display
$149.00
ADD TO FAVORITE
-
Description
« Compatible with E Ink ICE evaluation kit »

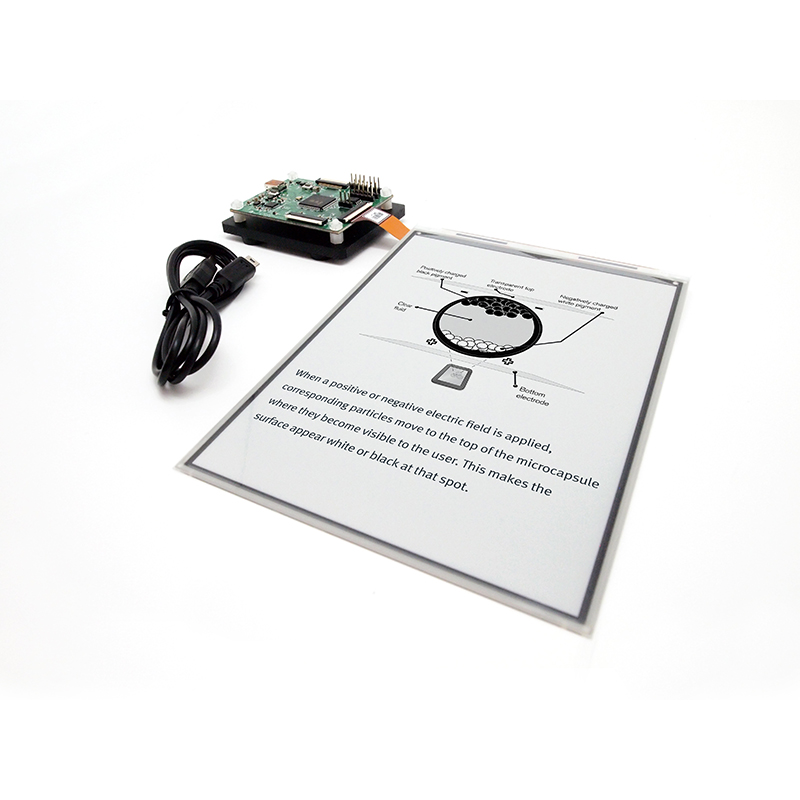

7.8˝ ePaper Display (VB3300-GHA) is a reflective electrophoretic E Ink technology display module based on glass active matrix TFT substrate. It has 7.8” active area with 1404 x 1872 pixels, and the display is capable to display images at 2-16 gray levels (1-4 bit) depending on the display controller and the associated waveform file it used.
-
Note
● Driving Board is not included in the display module package.
● Please make sure you are in possession of a E Ink ICE Driving Board.
Please select the corresponding project, and we will provide you with relevant support files according to your needs.
Application
Reading & Writing
Education
Business & Office
Mobile & Wearables
Retail
Logistics & Factory
Healthcare & Hospital
Transportation & Outdoor
Indoor Signage
Home & Appliance
Automotive
Innovative Design
Module Size
7.8˝ ePaper Display (VB3300-GHA)
Add to Cart
Added to Cart
Customers also considered
-
![}]()
ICE Driving Board
$350.00
Add to Cart
Add to Cart
Introduction
About This Item
Features
● High contrast reflective/electrophoretic technology
● 1404 x 1872 resolution
● Ultra wide viewing angle
● Ultra low power consumptionPure reflective mode
● Bi-stable
● Commercial temperature range
● Landscape, portrait mode
● Glass substrate
Package content
● 7.8˝ ePaper Display (VB3300-GHA)
Specification
Product Information
Item
Specification
Model
VB3300-GHA
Size
7.8 inch
Resolution
1404 (H) × 1872 (V) pixel
Active Area
118.638 (H) × 158.184 (V) mm
Pixel Pitch
0.0845 (H) × 0.0845 (V) mm
Pixel Configuration
Rectangle
Outline Dimension
127.6(W) × 173.8(H) × 0.78(D) mm
Total Weight
36.9 ± 5 g
Gray Level
16
ppi
300
Backplane
Glass
