Atelier with 13.3˝ Gallery™ Plus ePaper Display

  • Description

    Atelier with an 13.3” E Ink Gallery Plus display (AC133UT1) demo kit allows E Ink clients to access the hardware and software of 13.3” E Ink Gallery Plus display module for evaluation. This kit is a turnkey solution for those who are interested in designing with E Ink displays. Hardware and software design support is available from E Ink directly.
    13.3” E Ink Gallery Plus display is suitable for various applications, e.g. Artwork, Signage, Retail, etc…


    E Ink launched the next generation – E Ink Gallery™ Plus in 2022. This full color ePaper module, has a color gamut ideally reaching 60,000, an improvement over the earlier generations. The contrast ratio is improved by 40%, from 10 to 14, providing a more impactful visual experience.

  • Note

    ● The kit does not include an MCU driving board Raspberry Pi #3. Please purchase from Here
  • Introduction

  • Specification

  • Compatibility Table

  • Download

  • Related Products

Introduction

About This Item

Why should you choose Atelier with 13.3” display

● Accelerated design-in process of color ePaper

● Cost effective lay-out design as reference

● End-products adopt features of E Ink display, such as always-on, low power consumption, sunlight readability, etc.

● Suitable for applications such as signage and retail market

● Hardware and software support from E Ink directly

What Atelier with 13.3” display can do for you

● Demonstrate as a turn-key solution

● Hands-on experiment with Raspberry Pi #3

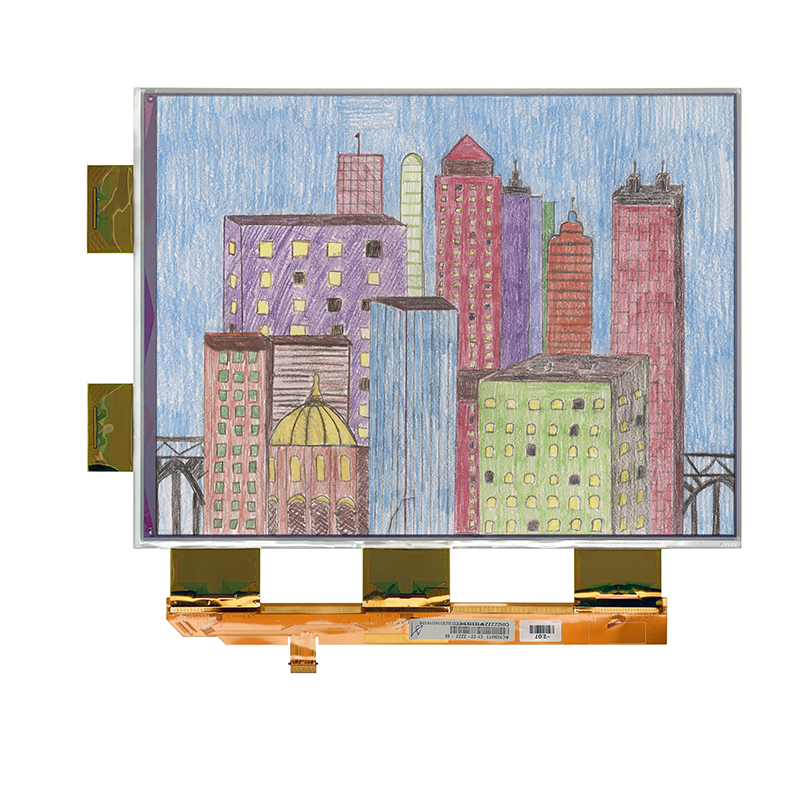

● Loading and viewing custom images on 13.3” E Ink display

● Easy tryout on applications desired

Features

● 13.3” E Ink Gallery™ Plus display

● All-in-one IC include Drive、TCON、PMIC and Temp Sensor

● Full reference design support directly from E Ink


Package content

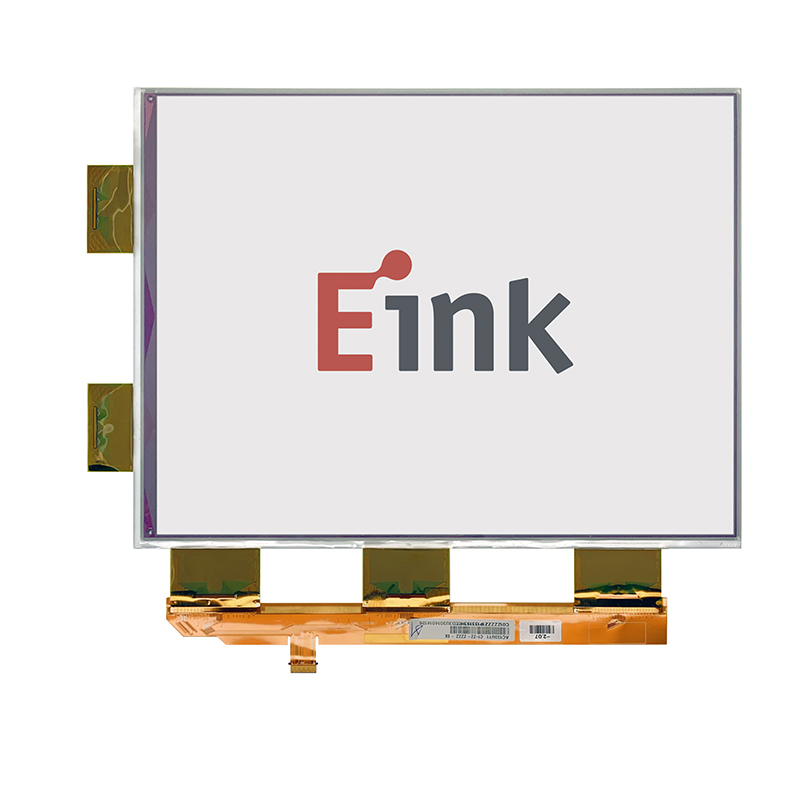

● 13.3˝ E Ink Gallery™ Plus Display (AC133UT1)

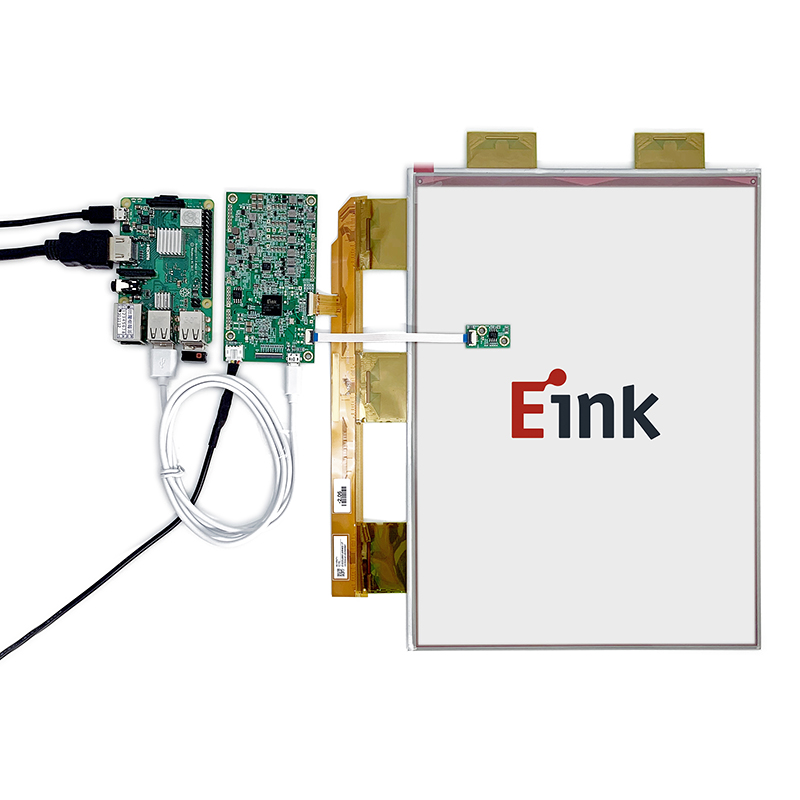

● Atelier - TCON Board

● Adapter (TCON)


*Notice

Kit does not include MCU driving board Raspberry Pi #3. Please purchase from Here

Specification

Product Information

Item

Specification

Size

13.3 inch

Resolution

1600 (H) × 1200(V) Pixel

Pixel Configuration

Rectangle

Outline Dimension (W/PF)

285.80(W) × 213.65(H) × 0.993(D) mm

Outline Dimension (W/O PF)

285.80(W) × 213.65(H) × 0.953(D) mm

ppi

150

E Ink Film

E Ink Gallery Plus

Controller Board

Outline Dimension

Tcon board: 50mm x100mm / TS board: 27mmx14.4mm / FFC: 10cm

Input

5Vdc (USB), power on when con

RAM

Embedded 64MB

Flash Memory

External 16MB

Operating Temperature

0~40 degree

Compatibility Table
