ICE with 6˝ ePaper Display Evaluation kit Setup Instruction
Display + Driving Board
ICE with 6˝ ePaper Display Kits
$449.00
ADD TO FAVORITE
-
Description
ICE with 6'' ePaper display (ED060KC1) demo kit allows E Ink clients to access the hardware and software of E Ink’s 6'' black and white ePaper display module for evaluation. This kit demonstrates as a turnkey solution for those who are interested in designing with E Ink displays. Hardware and software design support is available from E Ink directly.
6'' display panel is suitable for various applications, e.g. e-reader application, etc…
-
Note
● This Kits include ePaper display and drivnig board
Please select the corresponding project, and we will provide you with relevant support files according to your needs.
Application
Reading & Writing
Education
Business & Office
Mobile & Wearables
Retail
Logistics & Factory
Healthcare & Hospital
Transportation & Outdoor
Indoor Signage
Home & Appliance
Automotive
Innovative Design
Module Size

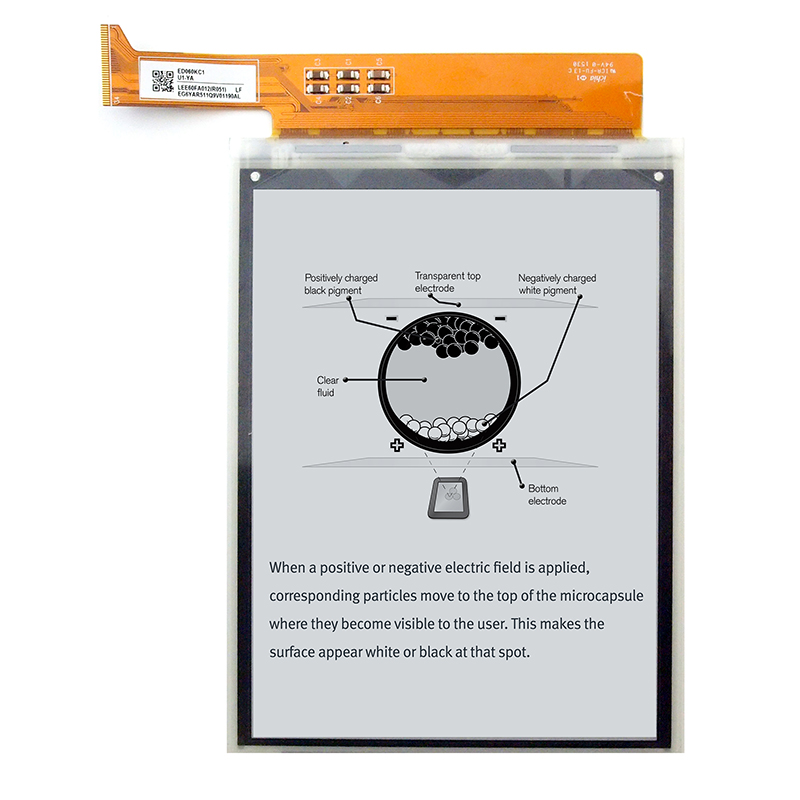

6˝ ePaper Display (ED060KC1)
Add to Cart
Added to Cart
Introduction
About This Item

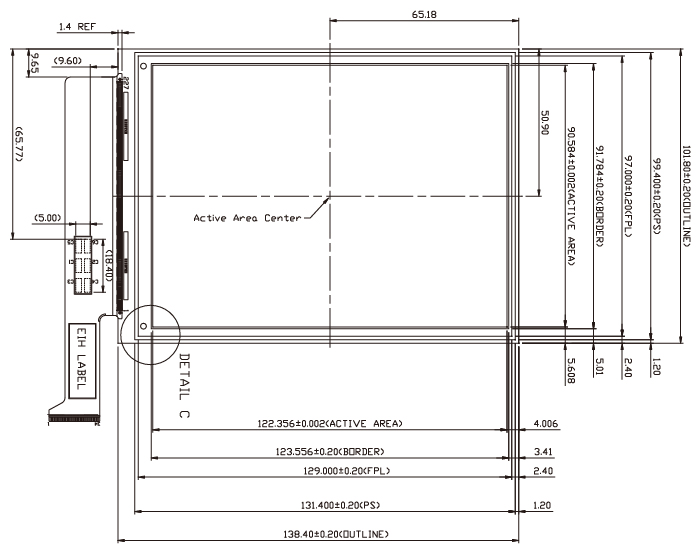

EPD Layout
Why should you choose ICE with 6˝ ePaper Display Kits
● Accelerated design-in process
● Cost effective lay-out design as reference
● End-products adopt features of E Ink display, such as always-on, low power consumption, sunlight readability, etc.
● Suitable for applications such as e-reader
● Hardware and software support from E Ink directly
What ICE with 6˝ display can do for you
● Demonstrate as a turn-key solution
● Loading and viewing custom images on 6˝ E Ink display
● Easy tryout on applications desired such as e-reader application
Features
● Easy installation
● 6˝ monochrome E Ink ePaper display
● Full reference design support directly from E Ink
● Common industry standard development environment
● Glass substrate
Package content
● EVK: TCON driving board
● ICE with 6˝ ePaper Display (ED060KC1)
● Mini USB cable
Specification
Product Information
Item
Specification
ePaper Display
Model
ED060KC1
Size
6 inch
Resolution
1072 (H) × 1448 (V) pixel
Active Area
90.584 (H) × 122.356 (V) mm
Pixel Pitch
0.0845 (H) × 0.0845 (V) mm
Pixel Configuration
Rectangle
Outline Dimension
101.8 (W) × 138.4 (H) × 1.01 (D) mm
Total Weight
28 ± 2.8 g
Gray Level
16
ppi
300
Backplane
Glass
Driving Board
Outline Dimension
65.5mm x 52.5mm x 15mm
Compatibility Table
E Ink ePaper Display Module v.s. Driving Board
1.64˝ Spectra™ 3100 ePaper Display (EB2000-AFA)
Click to know more
HULK
THOR
ICE
Arduino
Salt
Luvia
FLASH
MeeNote
HULK
THOR
ICE
Arduino
Salt
Luvia
FLASH
MeeNote
Technical Documents
Download
Browsing online and downloading
FIND MORE
Related Products
Welcome to know more products details
