Display + Driving Board + Stylus Pen
-
Description
JustWrite™ film, which delivers a natural writing experience without the use of a TFT backplane. Exhibiting almost no latency in pen writing, this technology closely resembles writing on paper, natural surfaces or marker boards. The film can be produced via roll to roll manufacturing typical of E Ink’s electronic paper and requires only a writing stylus and simple electronics to enable functionality. The simplicity of this technology enables any surface, small to large, to be digital writing enabled.
The JustWrite film features one of E Ink’s proprietary electronic inks and offers similar benefits as E Ink’s other product lines: a paper-like experience with a good contrast and reflective display without a backlight. The JustWrite film is an all plastic display, making it extremely durable and lightweight, with the ability to be affixed and removed easily, enabling writing surfaces in a variety of locations.
E Ink’s Justwrite demo sets include driving board, display module and stylus pen. There are part number list:
• Justwrite driver board (P/N:2ENGKIT001-ZZ)
• Juswrite display module 8.7’’ (P/N:PENG087A01-ZZ )
• Juswrite display module 10.5’’ (P/N:PENG105A01-ZZ )
• Juswrite display module 13.9’’(P/N:PENG139A01-ZZ)
• Stylus pen(P/N:MT-18)
Please click on “Contact Sales” below and fill out the form to submit your request.
-
Note
The samples sold hereunder consist of experimental test samples that have not been qualified for production. The samples are not commercial products and are not recommended for use with or in commercial products.
Introduction
About This Item
EPD Layout

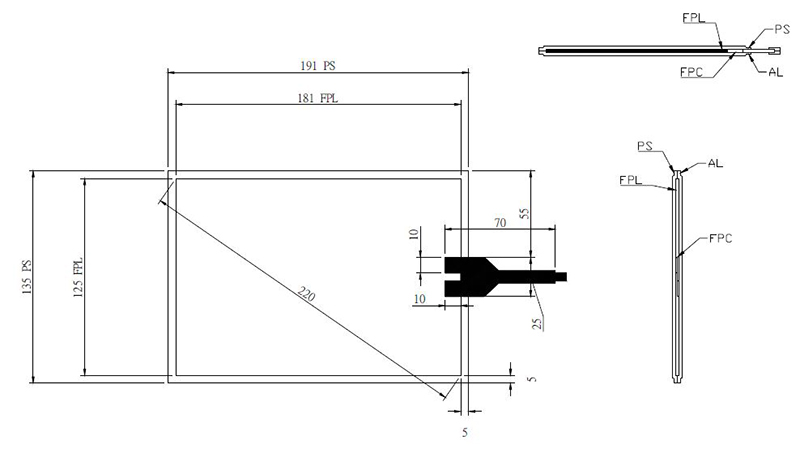

• Juswrite display module 8.7’’ (P/N:PENG087A01-ZZ )

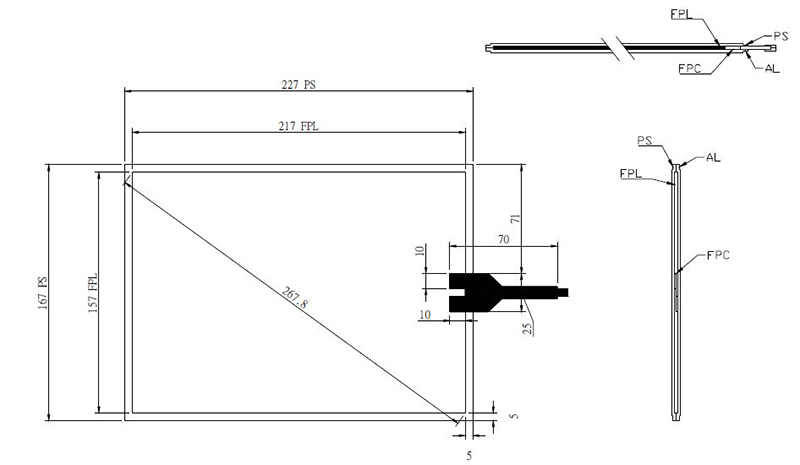

• Juswrite display module 10.5’’ (P/N:PENG105A01-ZZ )

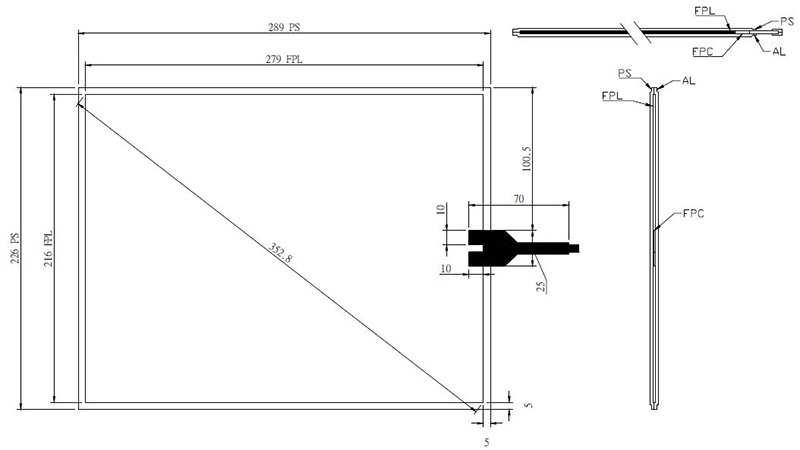

• Juswrite display module 13.9’’(P/N:PENG139A01-ZZ)
Users can easily demo the writing function with almost no latency on the JustWrite film.
Key Features
● Digitizer Compatible (Optional)
● Extremely Low Power
● Durable
● Reflective display without a backlight
● Bendable and conformable
● Any shape (including with holes)
● Natural writing experience with good contrast
● Variety of writing styles
Pen / Pencil
Brush
Marker
Stamps
Package content
● Justwrite ePaper Display (PENG087A01-ZZ,PENG105A01-ZZ,PENG139A01-ZZ)
● Driver board with battery(2ENGKIT001-ZZ)
● Stylus pen(MT-18)
Specification
Product Information
Item
Specification
Model
JustWrite
