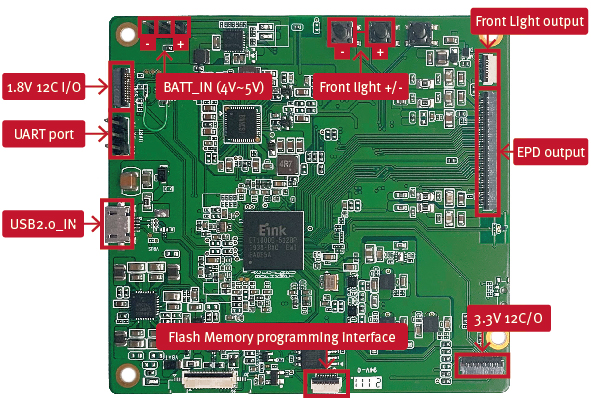

Driving Board Function
MeeNote Driving Board
$300.00
ADD TO FAVORITE
-
Description
The MeeNote development kit (driving board + accessories) enables you to develop innovative applications that benefit from low-power consumption of ePaper displays. It features simple installation and quick tryout for the desired applications. One can use development kit to load and view custom images on E Ink display with a PC or a laptop.
The MeeNote development kit (driving board + accessories) is equipped with touch and front light functions, giving users the opportunity to experience more than just displaying images. With the Windows application software provided, interactive operations between PC and ePaper can be realized. The software design uses common industry standard development environment (USB interface).
-
Note
● No display panel modules included in the MeeNote Driving Board package. Please purchase one or more MeeNote driving board compatible ePaper display modules separately. Please visit E Ink Display Modules. 6'' ePaper Display (SC1452-FOA)
● No accessories included in the MeeNote Driving Board package. Please purchase one or more MeeNote Accessories for connecting EPD modules of different sizes separately. Please visit MeeNote Accessories.
● While you are placing order for your MeeNote driving board, please select the display module size you would like to purchase or you are already in possession with from the drop-down list below. This will help us to prepare your MeeNote driving board with the correct firmware to match the display panel module.
● Firmware update is required for the first use and when different display panels are applied to the driving board.
Please select the corresponding project, and we will provide you with relevant support files according to your needs.
Application
Reading & Writing
Education
Business & Office
Mobile & Wearables
Retail
Logistics & Factory
Healthcare & Hospital
Transportation & Outdoor
Indoor Signage
Home & Appliance
Automotive
Innovative Design
Add to Cart
Added to Cart
Customers also considered
-
![}]()
6˝ Kaleido™ Plus ePaper Display
$199.00
Add to Cart
Add to Cart
Introduction
About This Item

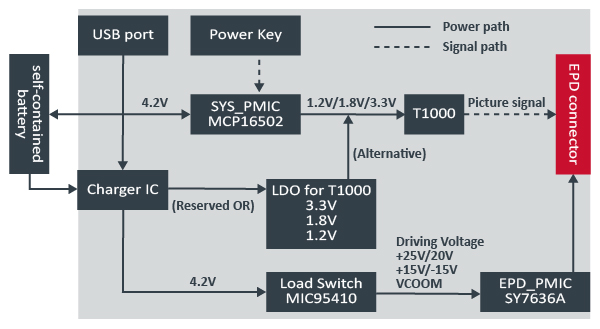

Function Block
Specification
Product Information
Item
Specification
Outline Dimension
78 mm x 88 mm x 1.0 mm
Compatibility Table
E Ink ePaper Display Module v.s. Driving Board
1.64˝ Spectra™ 3100 ePaper Display (EB2000-AFA)
Click to know more
HULK
THOR
ICE
Arduino
Salt
Luvia
FLASH
MeeNote
HULK
THOR
ICE
Arduino
Salt
Luvia
FLASH
MeeNote
Technical Documents
Download
Browsing online and downloading
FIND MORE
