MeeNote Accessories
$100.00
ADD TO FAVORITE
-
Description
The MeeNote development kit (driving board + accessories) enables you to develop high-performance applications that benefit from low-power operation. It features the easy installation and easy tryout on applications desired. You can use development kit loading and viewing custom images on E Ink display. Learn more about MeeNote Driving Board
MeeNote Accessories packages include cables (FFC) and adaptor boards. Different Accessories packages are required for different ePaper panel modules in order to allow MeeNote driving boards and ePaper panel modules to function correctly.
-
Note
● No driving board included in the MeeNote Accessories package. Please purchase your MeeNote driving board separately. Please visit MeeNote Driving Board.
● No display panel modules included in the MeeNote Accessories package. Please purchase one or more MeeNote Driving Board compatible ePaper display modules separately. Please visit E Ink Display Modules. 6'' ePaper Display (SC1452-FOA)
● While you are placing order for your MeeNote Accessories, please select the display module size you would like to purchase or you are already in possession with from the drop-down list below. This will help us to prepare your suitable MeeNote Accessories to match the display panel module.
Please select the corresponding project, and we will provide you with relevant support files according to your needs.
Application
Reading & Writing
Education
Business & Office
Mobile & Wearables
Retail
Logistics & Factory
Healthcare & Hospital
Transportation & Outdoor
Indoor Signage
Home & Appliance
Automotive
Innovative Design
Add to Cart
Added to Cart
Customers also considered
-
![}]()
MeeNote Driving Board
$300.00
Add to Cart
Add to Cart
-
![}]()
6˝ Kaleido™ Plus ePaper Display
$199.00
Add to Cart
Add to Cart
Introduction
About This Item

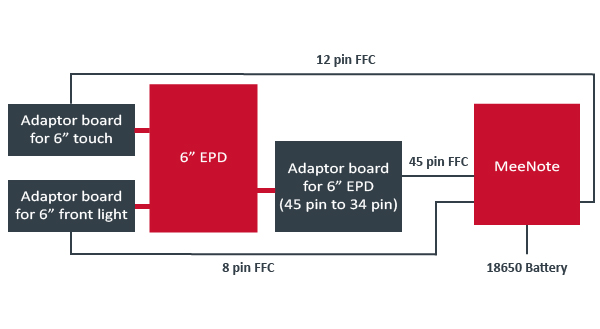

Connecting method of 6'' Kaleido package
Package content
Package content while choosing 6”Kaleido Plus ePaper Display (SC1452-FOA_0175-20600001)
● Adaptor board for 6” touch
● Adaptor board for 6” front light
● Adaptor board for 6” EPD (45pin to 34pin)
● 8 pin FFC
● 12 pin FFC
● 45 pin FFC
Package content while choosing 7.8”Kaleido Plus ePaper Display (SC1452-GHA_0175-20780002)
● Adaptor board for 7.8” touch
● Adaptor board for 7.8” front light
● 8 pin FFC
● 12 pin FFC
Specification
Product Information
Item
Specification
Outline Dimension
Adaptor board for touch: 35mm × 20mm × 0.5mm
Adaptor board for front light: 35mm × 20mm × 0.5mm
Adaptor board for EPD: 35mm × 20mm × 0.5mm
Compatibility Table
E Ink ePaper Display Module v.s. Driving Board
1.64˝ Spectra™ 3100 ePaper Display (EB2000-AFA)
Click to know more
HULK
THOR
ICE
Arduino
Salt
Luvia
FLASH
MeeNote
HULK
THOR
ICE
Arduino
Salt
Luvia
FLASH
MeeNote
