EPD Layout
4096 Colors + Touch Panel
6˝ Kaleido™ Plus ePaper Display
$199.00
ADD TO FAVORITE
-
Description
« Compatible with E Ink MeeNote evaluation kit »
6˝ ePaper Display (SC1452-FOA) is a 6-inch color (E Ink Kaleido™ Plus), reflective electrophoretic E Ink technology display module based on glass active matrix TFT substrate. It offers 16 levels of grayscale and is capable of displaying 4096 colors. Embedded with on-cell glass touch and front light illumination.
E Ink Kaleido Plus, the new generation in the Kaleido family based on E Ink Print Color technology, offers a better color balance and higher contact ratio. 6˝ ePaper Display (SC1452-FOA) is equipped with new image rendering algorithms allowing for crisper text. In addition, the front light is optimized for minimal color blending, offering enhanced reading and viewing experience.
By applying 6˝ ePaper Display (SC1452-FOA) with MeeNote development kit (driving board + accessories) enables you to develop innovative applications that benefit from low-power consumption of ePaper displays. It features simple installation and quick tryout for the desired applications. One can use development kit to load and view custom images on E Ink display with a PC or a laptop. Learn more about MeetNote driving board.
This model is suitable for the applications of eReader, eNote, promotion signage.
-
Note
● Driving board and accessory are not included in the display module package. Please purchase a MeeNote Driving Board package and MeeNote Accessories package for 6˝ ePaper Display (SC1452-FOA)
● If you are already in possession of a MeeNote driving board, please make sure you have matching accessories. (MeeNote Accessories package)
Please select the corresponding project, and we will provide you with relevant support files according to your needs.
Application
Reading & Writing
Education
Business & Office
Mobile & Wearables
Retail
Logistics & Factory
Healthcare & Hospital
Transportation & Outdoor
Indoor Signage
Home & Appliance
Automotive
Innovative Design
Module Size
6˝ Kaleido™ Plus ePaper Display (SC1452-FOA)
Add to Cart
Added to Cart
Customers also considered
-
![}]()

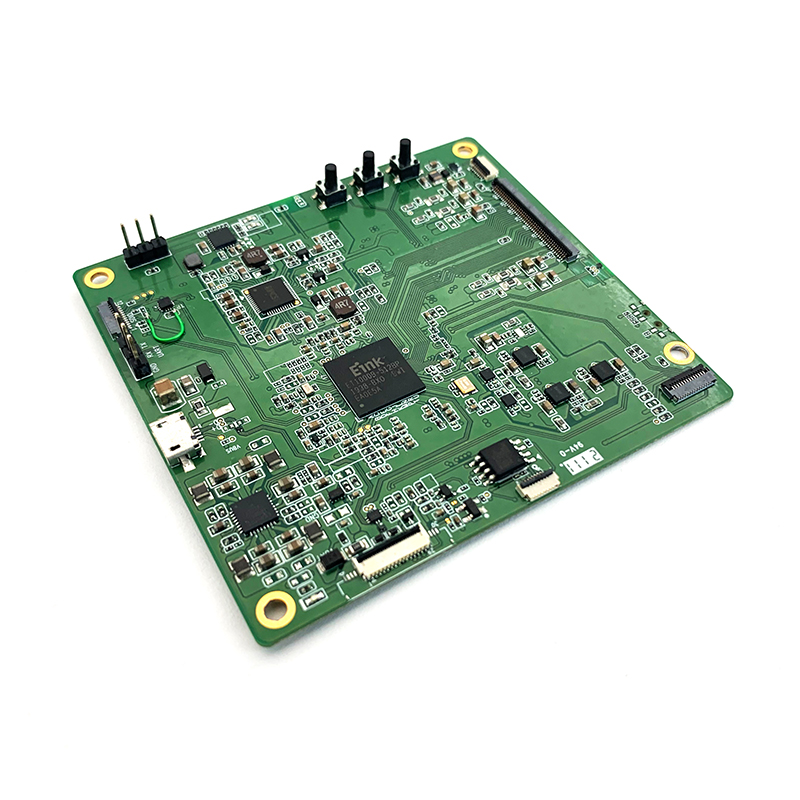

MeeNote Driving Board
$300.00
Add to Cart
Add to Cart
-
![}]()

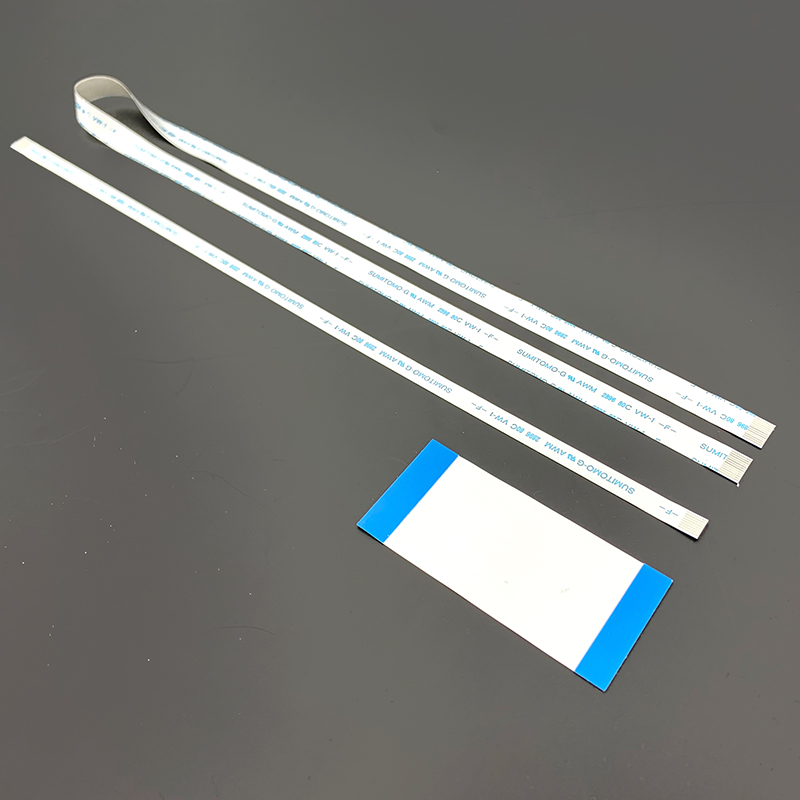

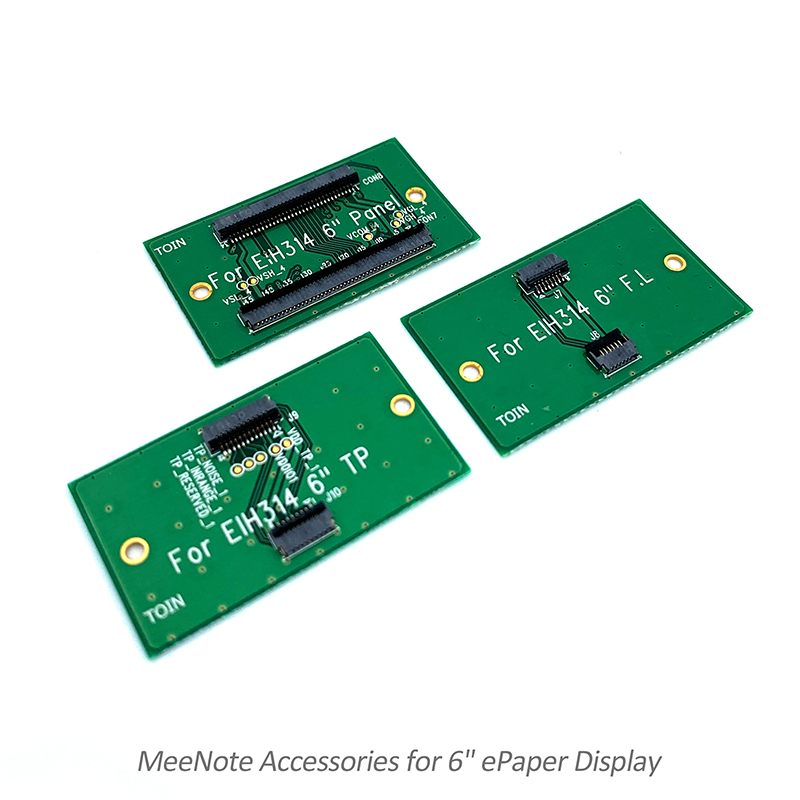

MeeNote Accessories
$100.00
Add to Cart
Add to Cart
Introduction
About This Item
Features
● High contrast reflective/electrophoretic technology
● Color display
● Glass TFT
● Capacitive touch
● Front light module
● Bi-stable
● Portrait mode
● AG film surface
● Commercial temperature range
Package content
● 6˝ ePaper Display (SC1452-FOA)
Specification
Product Information
Item
Specification
Size
6 inch
Resolution (Color)
357 (H)×482 (V) pixel
Resolution (B/W)
1072 (H)×1448 (V) pixel
Active Area
90.584 (H) × 122.356 (V) mm
Pixel Pitch
0.0845 (H) x 0.0845 (V) mm
Pixel Configuration
Rectangular

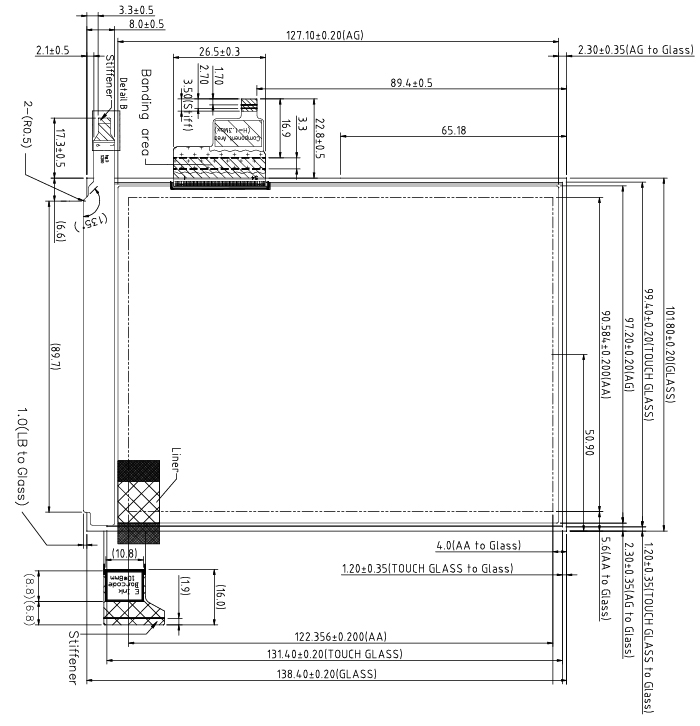

Outline Dimension
101.8 (W) × 138.4 (H) × 2.0 (D) mm
Total Weight
47.0 ± 5 g
Gray Level
16
